What is EcoSnap?

EcoSnap provides an easy-to-install ductless mini split heat pump that allows heat pumps to be installed without the installer handling refrigerant or having an electrician install electrical lines.

What separates EcoSnap from other heat pumps?

  • Easy to install

  • No tools required

  • No need to handle refrigerant

  • No need for an electrician

How does it work?

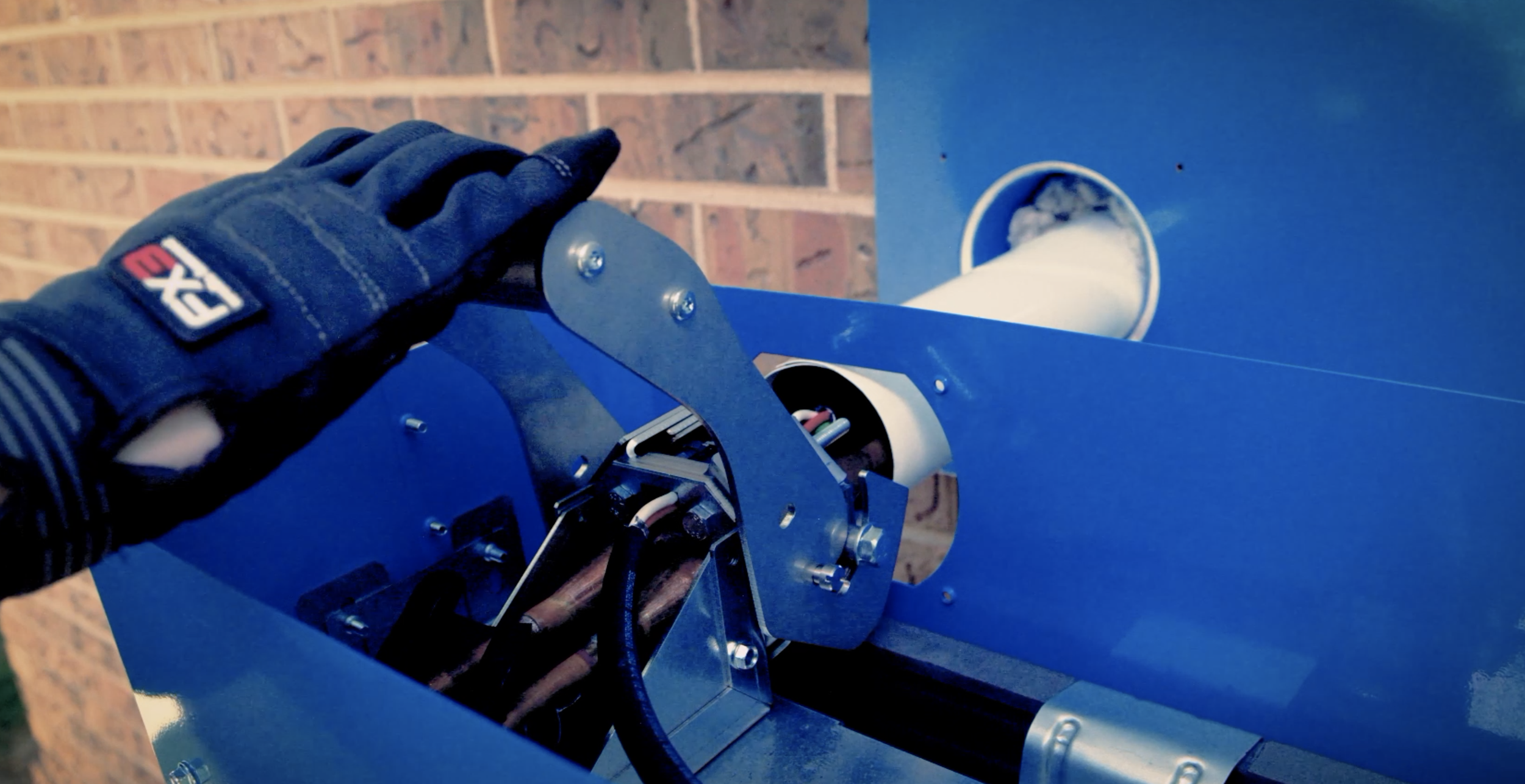

Patented connector technology allows refrigerant lines to be installed by a lever action. Self sealing fittings keep the refrigerant inside the lines.

  • AHRI Certificate #: 207688890

    Brand Name: TCL

    Power Supply: 120V 15A

    Refrigerant Type: R-410A

    Estimated Installation Time: 1 hour

  • AHRI Certified Ratings

    Heating Capacity, BTU/h: 12000

    Cooling Capacity, BTU/h: 12000

    EER2: 13

    SEER2: 23

    HSPF2 (Region IV): 9.5

    HSPF (Region IV): 10

    Certification & Efficiency Ratings

    CEE Tier: CEE Tier 1 (Path A & B)

    ENERGY STAR® Certified? Yes

    ENERGY STAR® Certified with Cold Climate Designation? Yes

  • Installation Guide - click to open

    Installation Video - click to open
